Female compression fittings give installers a straightforward, reliable method for connecting pipes and tubing. They help avoid the need for solder or welded joints. This guide explains the function of female compression fittings, breaking down how the compression nut and ferrule create a tight seal. It also highlights their importance in both plumbing and HVAC applications.
3/8 Valve Adapter
Opting for high-quality pipe fittings can greatly limit energy losses. That can reduce the risk of refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Choosing the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
For plumbing work, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can handle thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines cater to these needs, carrying common sizes and parts such as ferrules and compression nuts.
Quick Summary
- Female compression fittings uses a compression-nut and ferrule assembly to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—helps prevent corrosion and failure.
- Well-matched fittings help cut energy loss and help stop refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com support part selection.
- Check ferrules and tighten per manufacturer torque to maintain a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings fasten pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many contractors obtain parts from Installation Parts Supply to support consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting works with a nut and a ferrule olive pressed against the pipe by the fitting body. When the nut is tightened, it compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This design answers the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Main Differences Between HVAC And Plumbing Fittings
HVAC fittings need to manage refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are commonly selected for potable water, wastewater, and pressure from building systems. In the HVAC-versus-plumbing comparison, selection depends on media, service temperature, and pressure ratings.
HVAC setups including split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing systems frequently rely on PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Brass, Copper, Stainless Steel, PVC, And PEX Materials
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass fittings and ferrules withstand wear and are common in many compression fittings. Stainless steel works well in corrosive or high-pressure environments.
PEX compression is often selected for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Usual Application | Key Strengths | Restrictions |
|---|---|---|---|
| Copper | Cooling lines and drinking-water systems | Strong conductivity with durable performance | Higher price and possible denting or damage |
| Brass Parts | Compression nuts, ferrules, fittings | Strong machinability with corrosion protection | May react with incompatible metals |
| Stainless fittings | Corrosive or high-pressure systems | Strong, durable, and resistant to corrosion | Costlier with tougher fabrication |
| PEX Pipe | Domestic water systems | Easy to route and tolerant of freezing conditions | Must be matched with proper PEX fittings |
| PVC Material | Drainage and low-pressure cooling circuits | Economical with straightforward installation | Limited in hot or pressurized applications |
Why Choosing The Right Fitting Matters For Efficiency And Leaks
Choosing the right fitting reduces leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Choosing the proper ferrule olive and matching copper fittings or PEX compression hardware reduces the chance of galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.

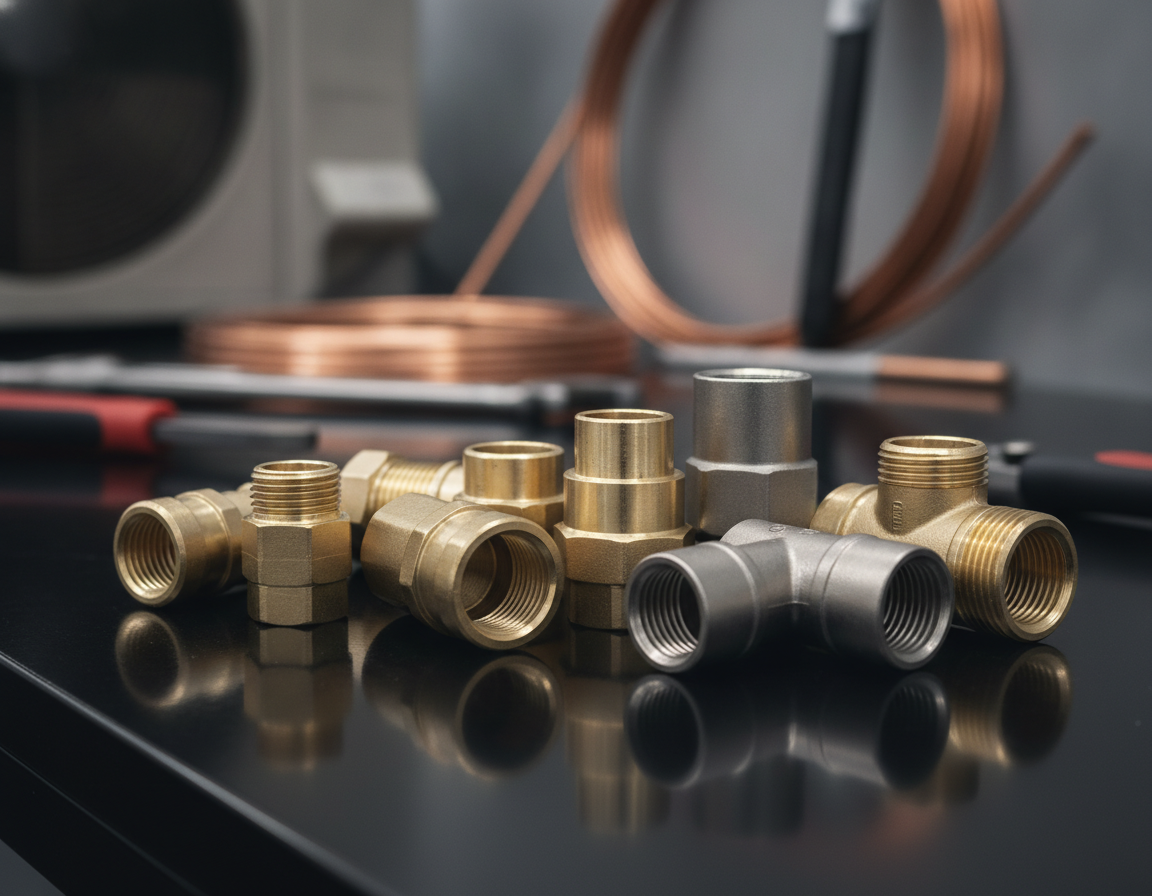

Female Compression Fittings
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This design enables tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Definition And Common Configurations
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Installers often use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Copper and brass are often selected for refrigerant fittings and hot-water lines due to their ability to handle thermal cycles and resist deformation. Stainless steel works well in high-pressure or corrosive environments. PEX and PVC are often used in condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Serviceable gas and instrument lines frequently use compression parts for leak-tight, serviceable connections.
How Female Compression Fittings Compare With Male Fittings And Adapters
A female fitting accepts a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter enables technicians interface service valves and gauges to the system. Selecting compatible materials reduces galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Part | Material Choice | Usual Application | Service Reminder |
|---|---|---|---|
| Compression nut | Brass material | Plumbing feeds and shutoff connections | Replace if rounded or cracked |
| Sealing ferrule | Brass or stainless | Seals around copper, brass, or compatible PEX | Generally replaced after being compressed |
| Compression fitting body | Machined brass or stainless | Refrigerant fittings, instrumentation | Match to refrigerant type and pressure rating |
| Small male compression fitting | Brass or copper | Mating for female ports, small-diameter lines | Confirm thread and seat match |
| 3/8 valve adaptor | Machined brass | Service valves, gauges, and manifolds | Match seals to refrigerant fittings |
| Installation Parts Supply source | Several material options | Source for replacement nuts, ferrules, and kits | Buy compatible ferrules and nuts for system longevity |
Types, Sizes, And Related Adapters For Plumbing And HVAC Projects
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Contractors select couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Selecting the proper parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Couplings work well for straight connections, while compression unions are more suitable for components that need to be disconnected without disrupting the line. In compact systems, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are necessary for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs list a wide range of these components, ensuring quick access on job sites.
Proper sizing is critical, depending on the tube’s outside diameter and the ferrule and nut set. Make sure the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. It’s also important to check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These fittings streamline the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Brass and copper are commonly selected for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental performance of fittings relates to leak prevention and recyclability. Correctly installed metal fittings help reduce refrigerant emissions and can be recycled at the end of their life. Buying quality parts from reputable suppliers reduces failures and minimizes long-term environmental risk.
The table below helps compare between common options by application, pressure, temperature, and reusability.
| Fitting Style | Typical Use | Approximate Max Pressure | Service Temperature Range | Reusable Status |
|---|---|---|---|---|
| Brass coupling | Instrumentation, small water lines, refrigerant | Up to 3,000 psi depending on specification | Typical range from -65°F to 250°F | Limited reuse if the ferrule remains intact |
| Brass or stainless compression union | Serviceable joints, maintenance access | Up to about 2,500 psi | -65°F to 300°F | High; designed for disconnects |
| 3/8-inch compression coupling | Small plumbing, refrigeration, and instrumentation use | Depends on system; confirm pressure rating | Confirm material temperature rating | Moderate; often replaced during servicing |
| 3/8 male compression fitting | Connection to service valves and gauges | Refrigerant-rated when made and specified correctly | Suitable for typical HVAC cycles | Reusable when not damaged |
| Specialty Max Adaptor | Specialized coupling for gauge and valve interfaces | Designed for higher service-tool demands | Designed around HVAC service cycles | Reusable; built for repeated service |
| PEX/PVC fittings | Condensate and low-pressure water | Low rating and unsuitable for refrigerant | Commonly around 32°F to 140°F | Sometimes reusable, but UV can reduce life |
When sourcing parts, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Correct compression fitting installation begins with clean, square pipe ends and the right parts. For refrigerant lines in HVAC systems, use copper and brass. On chilled water or condensate runs, PVC or PEX is best. Review manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How to install compression fittings
1. Cut and deburr the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. With softer plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Finger-tighten first the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Use two wrenches to hold the fitting body and turn the nut to prevent tube twist. Use torque guidance from the fitting maker or Installation Parts Supply when available. A common method is to snug by hand, then add a limited number of wrench turns.
When pipe inserts are needed
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid tightening too little or too much. Too little tightening can cause leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal steps
Shut off the supply and relieve pressure first. Stabilize the fitting body with one wrench while loosening the nut with a second. Back off the nut and remove the ferrule. If the ferrule remains tight, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation guidance
For compact 3/8″ service connections, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
When pressure is restored, inspect joints for weeps and tighten slightly if needed. Add routine checks for corrosion and thermal fatigue, especially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | What To Do | Helpful Tip |
|---|---|---|
| Preparation | Cut the tube square, deburr, and clean it | Use proper cutting and deburring tools |
| Fit-Up | Slide on the nut and ferrule, then insert into the fitting | Use inserts where plastic tubing may deform |
| Tighten | Finger-tighten first, then apply two-wrench tightening | Use the maker’s torque recommendation |
| Test | Pressurize the system and look for weeps | Watch for slow weeps; re-torque slightly if safe |
| Service | Inspect regularly, replace ferrules when disassembled | Keep replacement parts from Installation Parts Supply nearby |
Closing Notes
Selecting the proper compression fitting is essential for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must suit the service type. That supports reliability and extends system life. Proper parts and installation can significantly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They rely on a nut, ferrule, and body. To ensure a tight seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These techniques help ensure long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For job-specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. High-quality components from reputable suppliers matter. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Routine inspections and correct selection help maintain system efficiency and compliance.
To summarize, dedicating time to material selection and correct assembly is vital. That helps create durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
