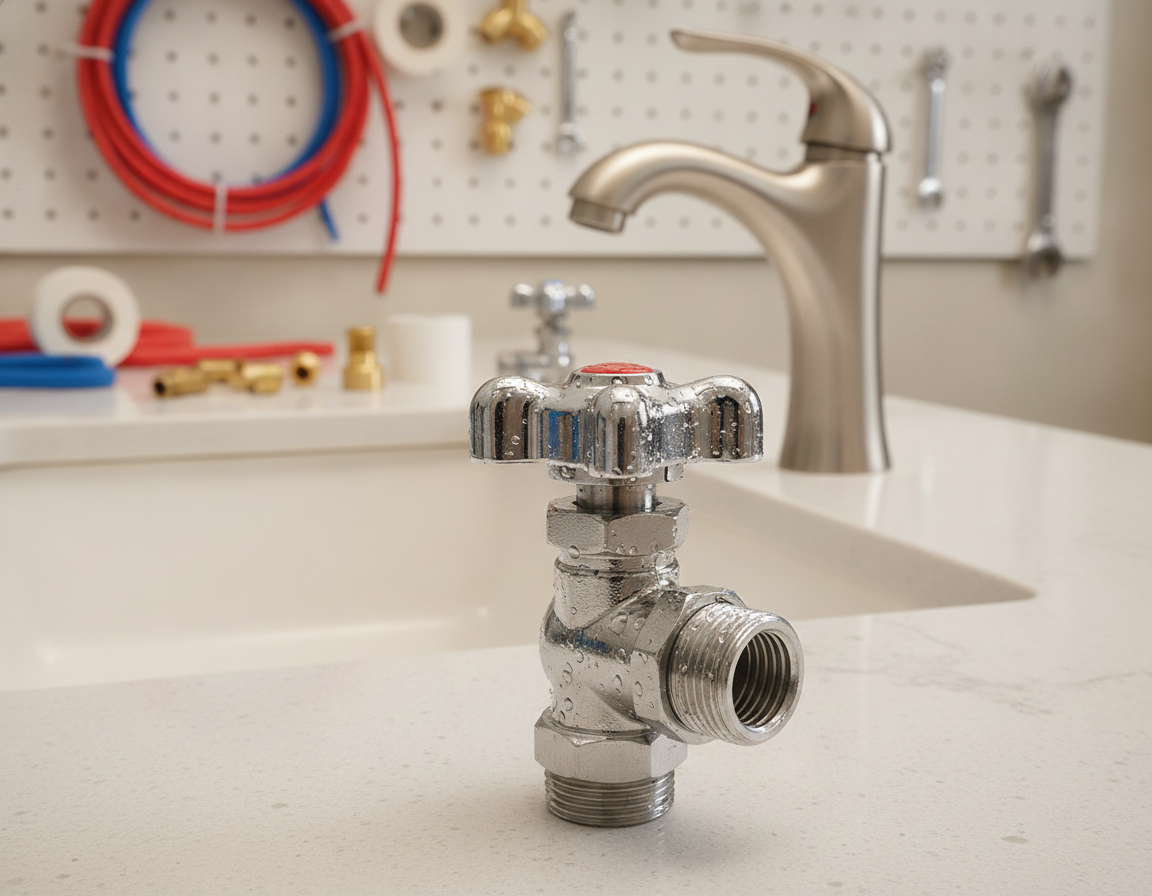

An angle stop is a small, L-shaped shutoff valve where a water line connects to a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. This makes repairs and replacements faster and less disruptive.
Angle Valve For Sink
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. They are easier to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Key Takeaways
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they shut off faster.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
What An Angle Stop Is And Why It Matters
An angle stop is a compact shutoff valve placed where the supply line connects to a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Angle Stop Definition Explained
An angle stop is a right-angle valve installed on the supply line feeding a fixture. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They sit at the back of cabinets where the supply line enters. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Why Angle Stops Help Homeowners
A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Turning the valve periodically helps keep it from sticking. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff less stressful.
Difference Between Angle Stop And Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are suited to sinks, toilets, and everyday household appliances. An industrial Angle Seat Valve is a different type of valve. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Types Of Angle Stops And How To Choose One
Choosing the right angle stop for a home project means considering material, operation, connection type, and special features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Common Valve Materials
Brass is the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.
Valve Operation Styles
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Angle Stop Connection Types
Compression Angle Stop fittings join with a nut and ferrule and suit copper or CPVC stub-outs. They install without heat and are popular in remodels. Sweat Angle Stop connections are soldered to create a slim, permanent joint where torch work is safe and allowed. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Extra Angle Stop Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Select a model that matches your pipe type and service expectations to avoid premature failure.
Understanding Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some labels specify 3/8 COMP for compression outlets. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Typical Placement In The Home
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.
Code And Safety Notes For Potable Water
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Recommended Angle Stop Standards
Modern Angle Stops commonly feature quarter-turn ball-style operation. A Quarter-Turn Angle Stop provides fast shutoff in emergencies and, when made from brass, can offer long service life. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Quick Checklist For Choosing Angle Stops
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops With Tools Steps And Best Practices
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. The main usually needs to be closed only when the existing stop is frozen. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always relieve pressure by opening a downstream faucet, and keep towels plus a bucket nearby.
Before the repair begins, collect the necessary tools, fittings, and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Installation Checklist:
- Adjustable wrench plus backup wrench
- Clean-cutting and deburring tools
- PTFE tape and marker
- Push-fit valve and required stiffener
- Extra ferrules, nuts, oil, towels, and cleanup supplies
Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop joints require careful handling. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture gradually. Wipe joints to spot tiny weepers. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Common Problems And Quick Repairs For Angle Stops
Homeowners often encounter small leaks and frozen handles with angle stops. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaking At The Stem Or Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Frozen Or Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Leaks At Compression Joints
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When To Upgrade The Valve
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Quick Checklist
- Tighten the packing nut slightly for stem drips.
- For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Conclusion
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It can also lower the chance of water damage during fixture upgrades and maintenance.
For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
When installation feels uncertain, hiring a licensed plumber is the safer option. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. This protects fixtures and simplifies maintenance. It also follows best practices in Angle Stops Plumbing for modern residential installations.
